【保姆级教学】某金融app FRIDA hook加解密算法+jsrpc=乱杀

2023-03-16 19:10:08 88 24471 19

0x01 APP渗透测试

因为是经过授权的测试,所以拿到的这个包是没有加固的。

加固的话,也是有对策的,可以使用脱壳机脱壳,使用hluda绕过frida检测。

1.1 绕过root检测

1.打开app,发现提示:”系统已root,不允许操作“,然后软件进行退出,无法进行后续操作。

所以需要绕过root检测。

2.打开magisk,在设置中选择“隐藏magisk”,然后输入随机包名,根据提示进行重启

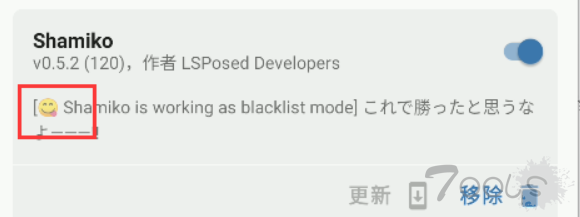

● 安装shamiko:https://github.com/LSPosed/LSPosed.github.io/releases

笑脸为启用状态。

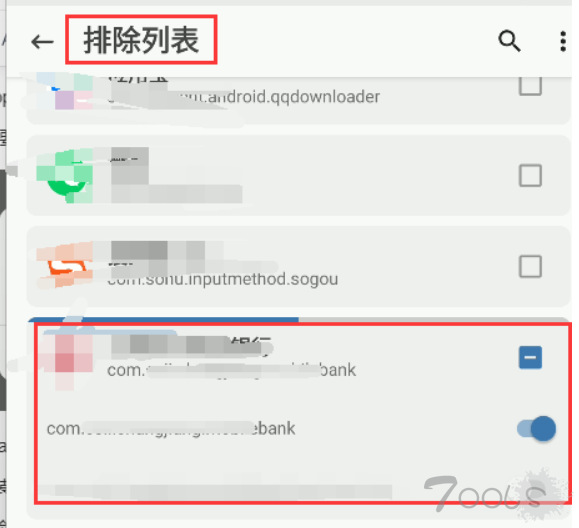

● magisk设置——配置排除列表——勾选app(此处的操作是为app隐藏root,及没有通过root启动app)

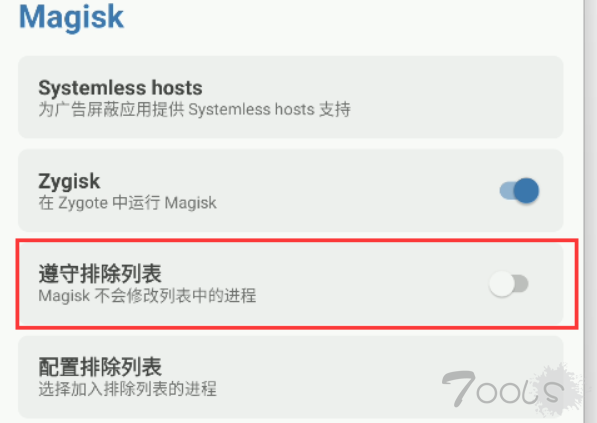

需要关闭“遵循排除列表”

3.然后重启,便可以打开app了。

1.2 抓包(burp抓安卓app包)

电脑地址:192.168.1.39

手机端设置:

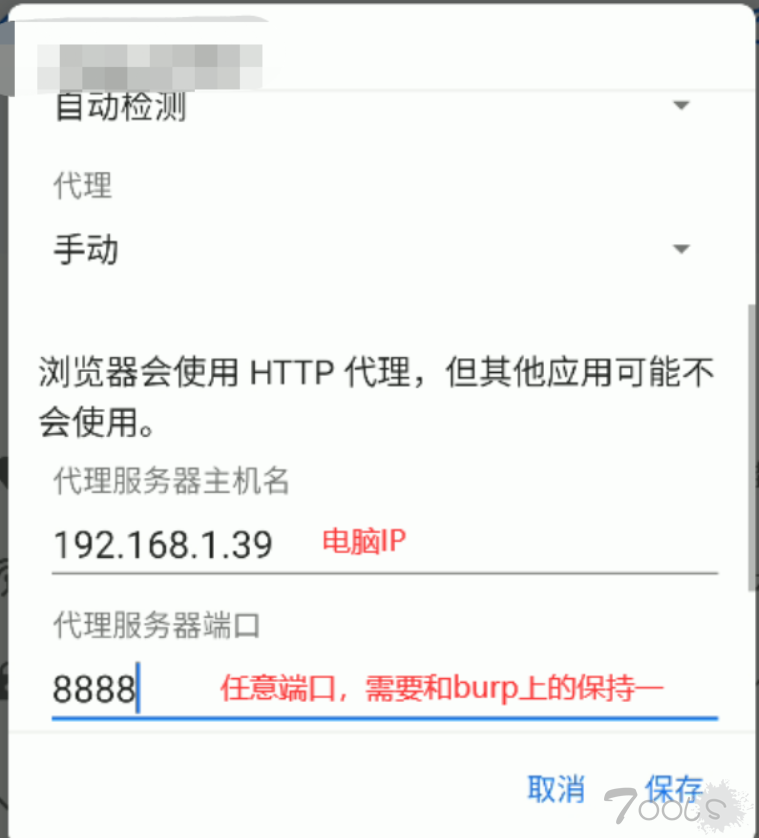

将手机wifi连接到与电脑同一网段下,然后修改wifi代理:

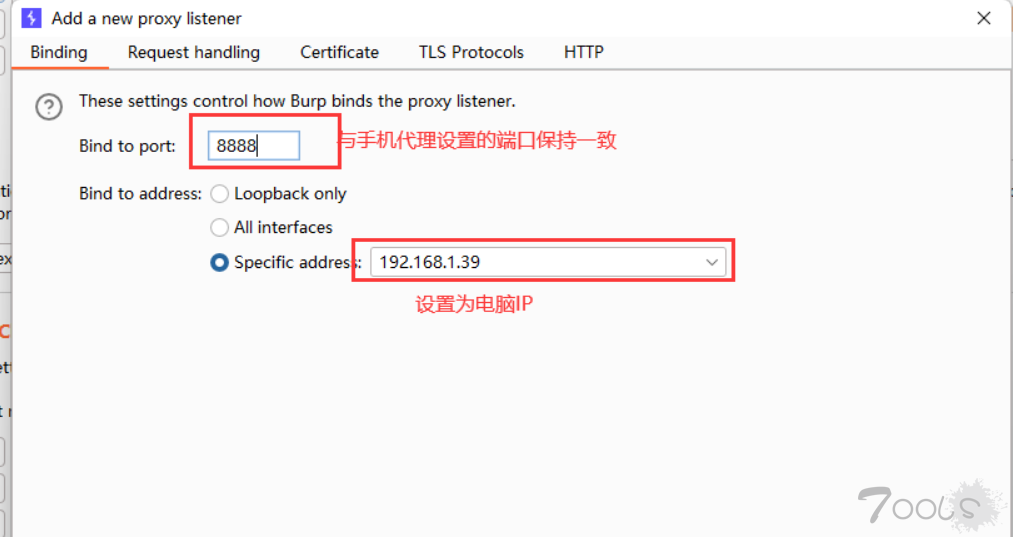

电脑burp设置:

注意:抓取https的包需要安装证书,需要注意的是,安卓7.0以下,系统信任用户安装的证书,而安卓7.0以上,系统不会信任用户安装的证书,导致无法抓取https的包,建议使用magisk+Move Certificates将证书移动到系统路径下。

  1. 然后开始抓包,还好app没有各种检测,能顺利抓包~

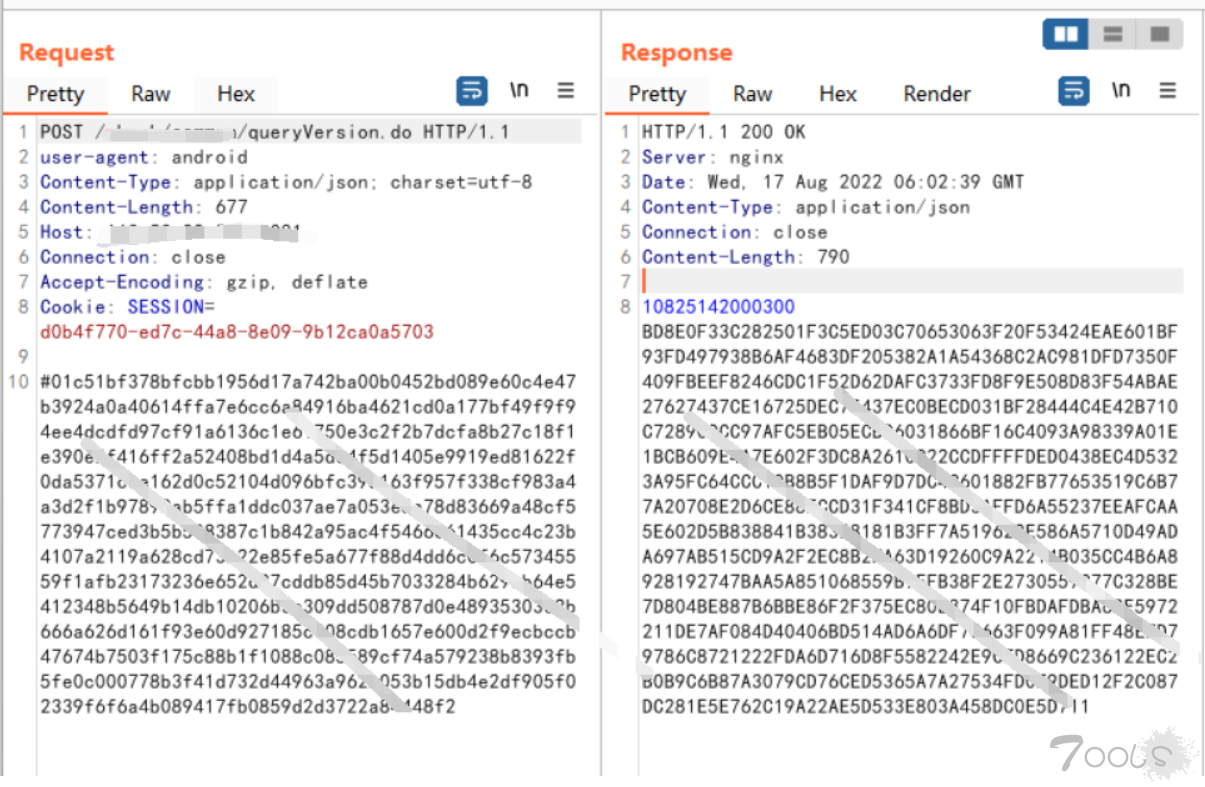

通过抓包,发现请求包和返回包都被加密了,但是通过观察多个请求包会发现请求体的内容都是以“#01开头”,而这正是突破口,我们可以通过反编译代码,全局搜索“#01”,来寻找加密的地方。

1.3 APP反编译分析

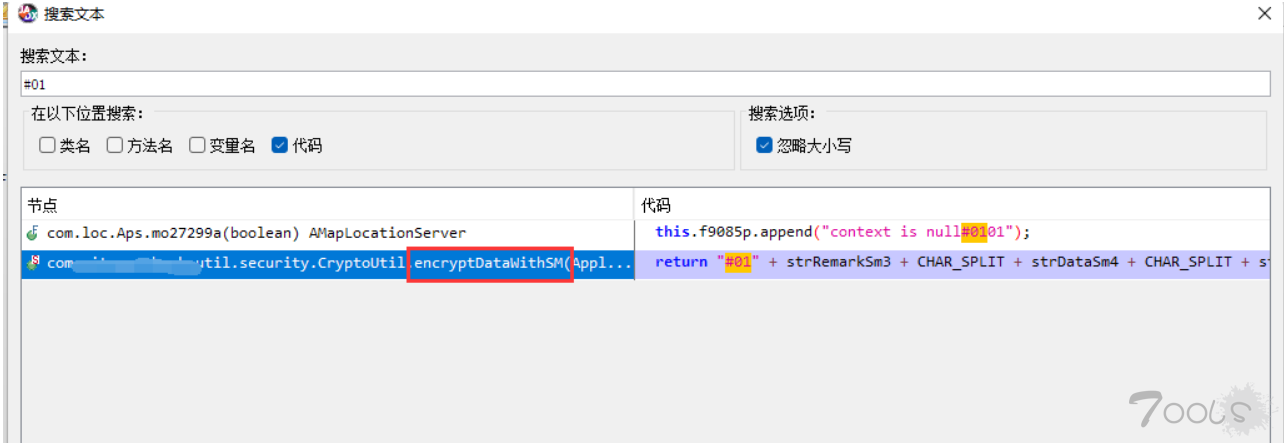

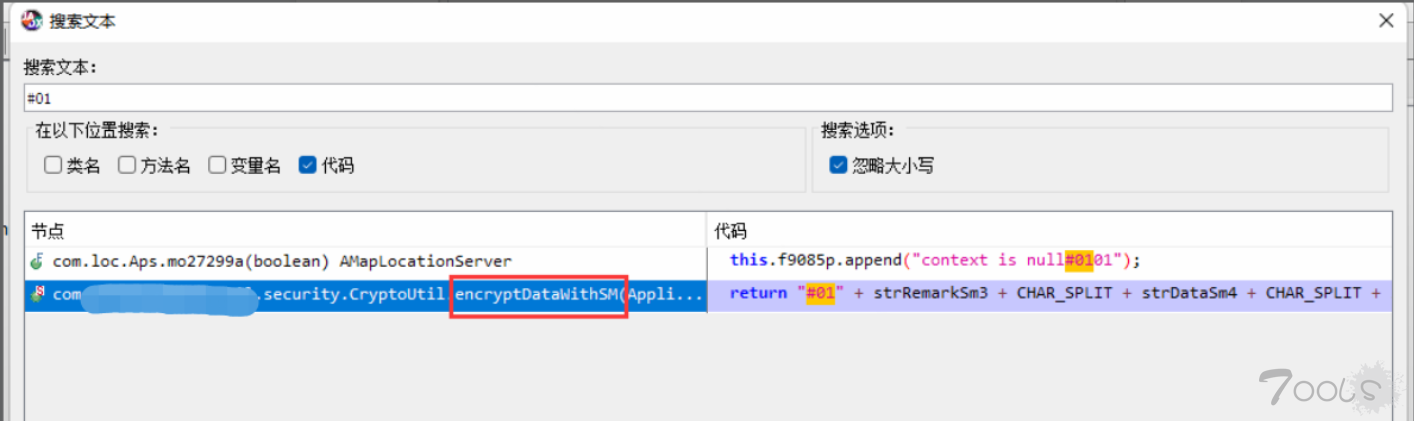

1.使用burp对app进行抓包,发现报文被加密,但是有个相同的特点——报文都是以"#01"开头,于是我们在jadx-gui中全局搜索(ctrl+shift+F)“#01”

2.在搜索结果中可以看到关键字“encrypteDataWithSM“(中文意思为:使用SM方式加密数据),然后双击点进去查看详细代码。

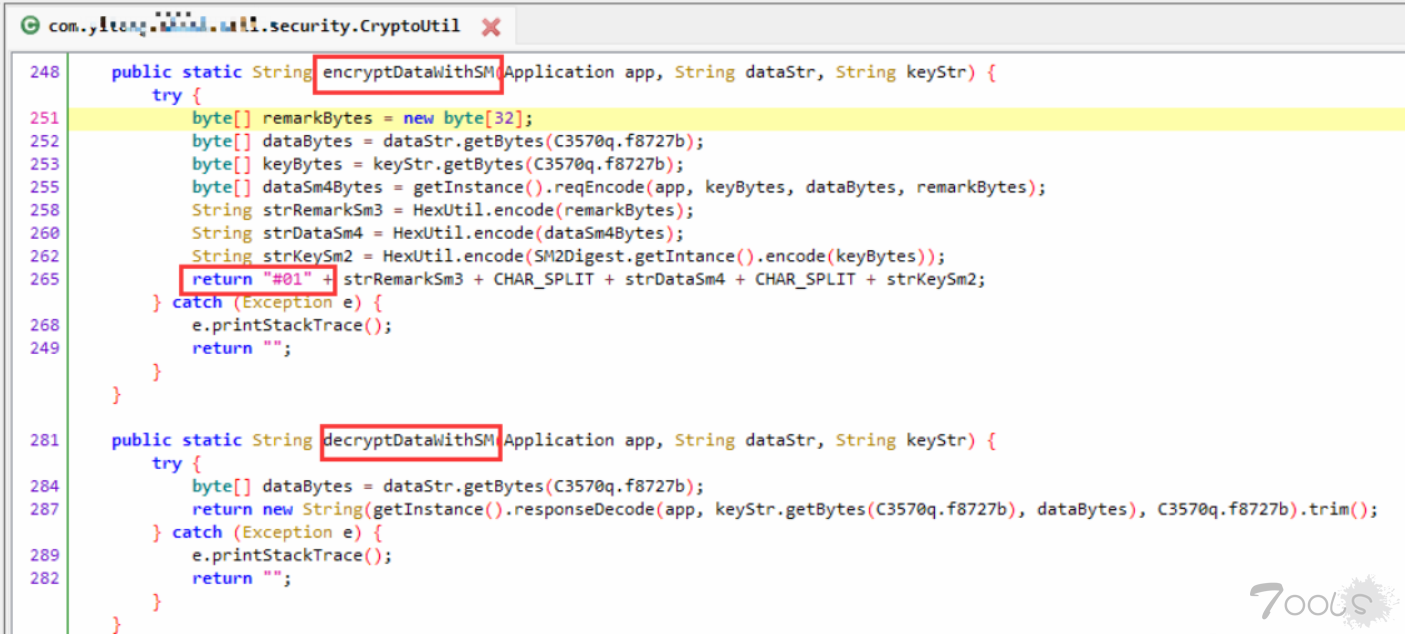

3.通过上图,可以看到encrypt与decrypt,通过分析代码推断此处为加密和解密函数,为了确定是加解密函数,我们对这两个方法进行hook,使用objection也可以。

0x02 Frida HOOK

2.1 编写hook代码

import frida, sys

jscode ="""
Java.perform(function () {
<!-- 获取CryptoUtil这个类的对象 -->
    var CryptoUtil = Java.use('com.xxxx.security.CryptoUtil');
<!-- 调用encryptDataWithSM方法,因为这个方法的参数有三个,所以在 function 中有三个参数,至于为什么没有类型修饰,因为 JavaScript 是弱语言 -->
    CryptoUtil.encryptDataWithSM.implementation = function (app,dataStr,keyStr) {
        console.log("Hook Start...");  //
        console.log("app:",app); //打印app参数
        console.log("dataStr",dataStr); //打印dataStr参数
        console.log("keyStr",keyStr); //打印keyStr参数
        var data = this.encryptDataWithSM(app,dataStr,keyStr);//使用this.encryptDataWithSM()再次调用原函数并把原本的参数传递给这个encryptDataWithSM()函数,然后通过return原封不动的返回。
        return data;
    }
});
"""
# 这下面的代码的作用就是为了执行上面 JS 代码,输出 JS 中 send() 方法中的内容
def message(message, data):
    if message["type"] == 'send':
        print("<li> {0}".format(message['payload']))
    else:
        print(message)
# 获取这个 APK 的进程,可以使用frda-ps -Ua获取
process = frida.get_usb_device().attach('xxxxxx银行')
script= process.create_script(jscode)
script.on("message", message)
script.load()
sys.stdin.read()

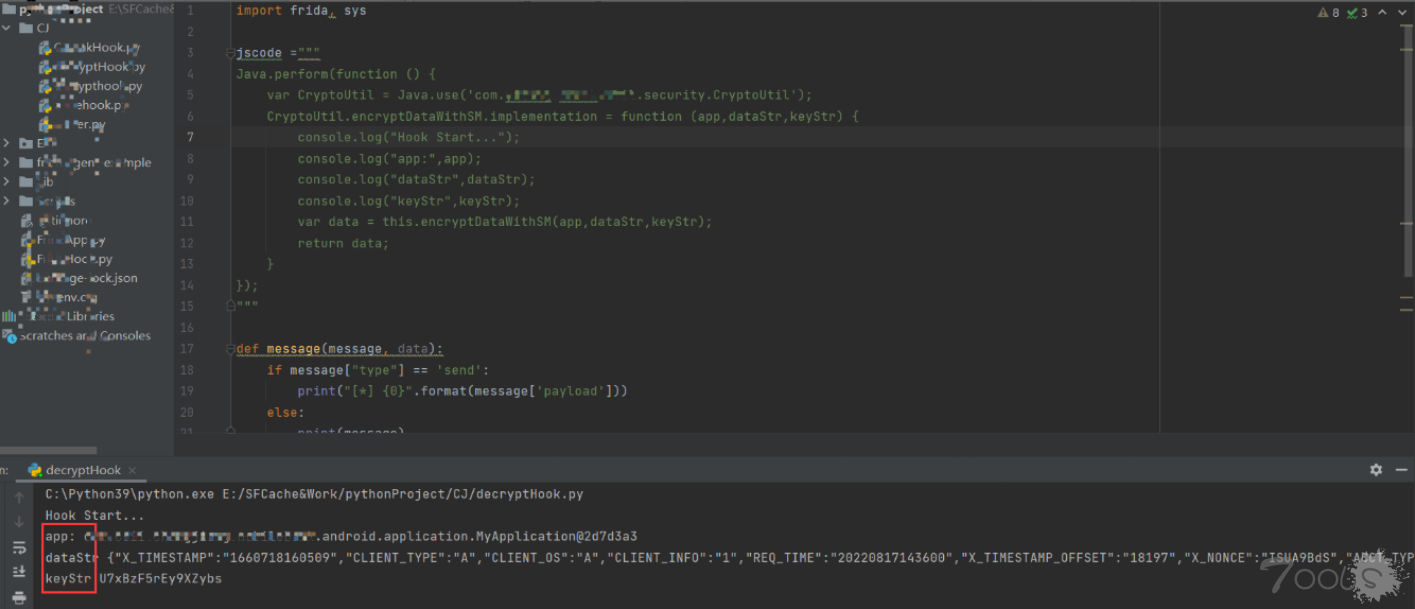

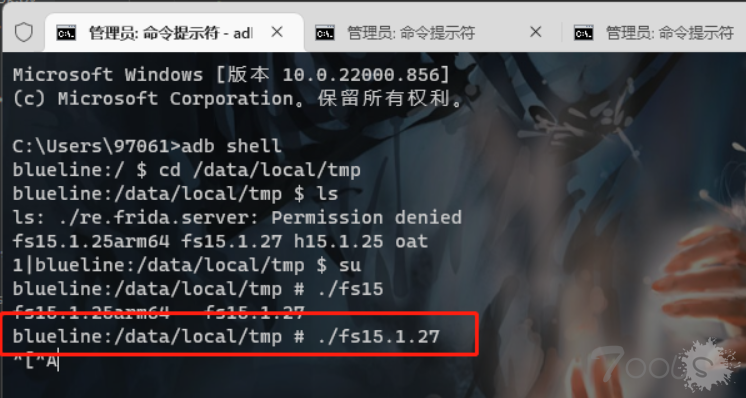

手机端运行frida,然后pycharm直接运行代码,操作手机,查看控制台输出。

从控制台可以看到encryptDataWithSM()函数被成功hook,而dataStr也是我们想要的报文。

2.2 hook 加解密函数

我们修改代码,只打印dataStr并同时hook解密函数。


import frida, sys

jscode ="""
Java.perform(function () {
    var CryptoUtil = Java.use('com.xxxx.security.CryptoUtil');
    CryptoUtil.encryptDataWithSM.implementation = function (app,dataStr,keyStr) {
        console.log("Hook Start...");
        console.log("encrycptDataStr",dataStr);
        var data = this.encryptDataWithSM(app,dataStr,keyStr);
        return data;
    }
    CryptoUtil.decryptDataWithSM.implementation = function (app,dataStr,keyStr) {
        console.log("Hook Start....");
        console.log("decrycptDataStr:",dataStr)
        var data = this.decryptDataWithSM(app,dataStr,keyStr);
        return data;
       }
});
"""
def message(message, data):
    if message["type"] == 'send':
        print("<li> {0}".format(message['payload']))
    else:
        print(message)

process = frida.get_usb_device().attach('XXXXX银行')
script= process.create_script(jscode)
script.on("message", message)
script.load()
sys.stdin.read()

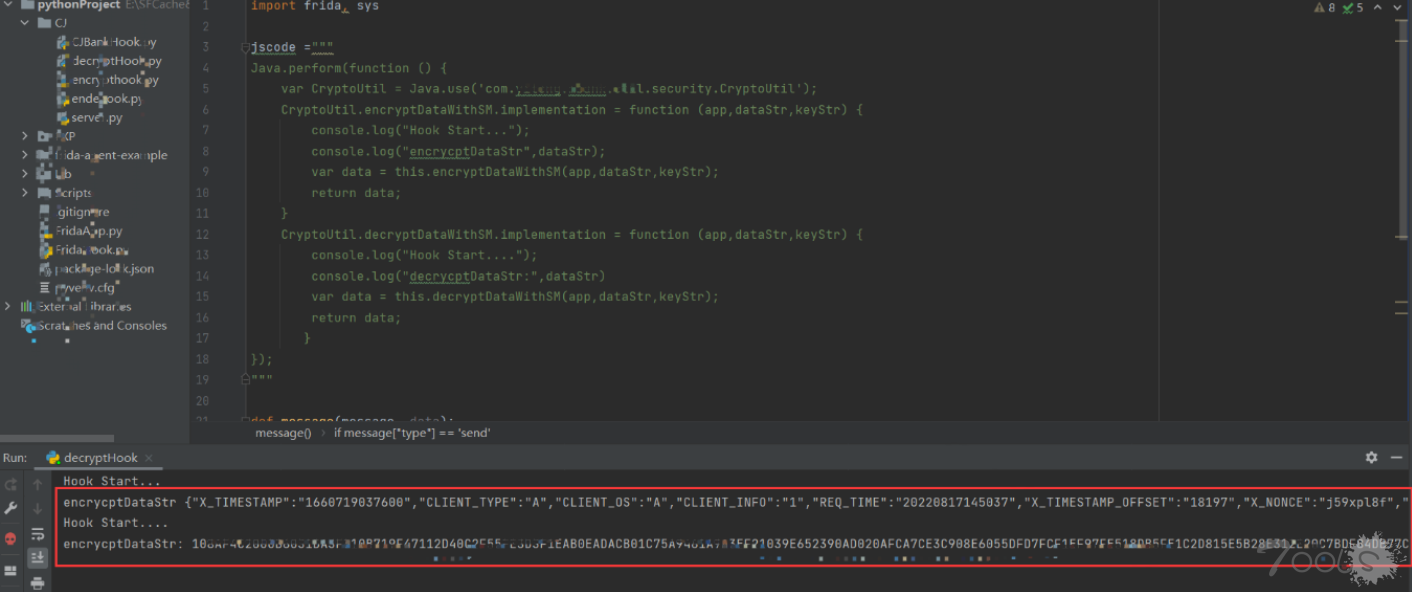

我们看到encryptDataWithSM加密前的数据以及decryptDataWithSM解密前的数据被打印出来。现在我们是数据都拿到了,但是怎么篡改数据那,那么我们就要rpc了。

0x03 编写转发脚本

感谢pyth0n大佬的项目

3.1 修改hook代码

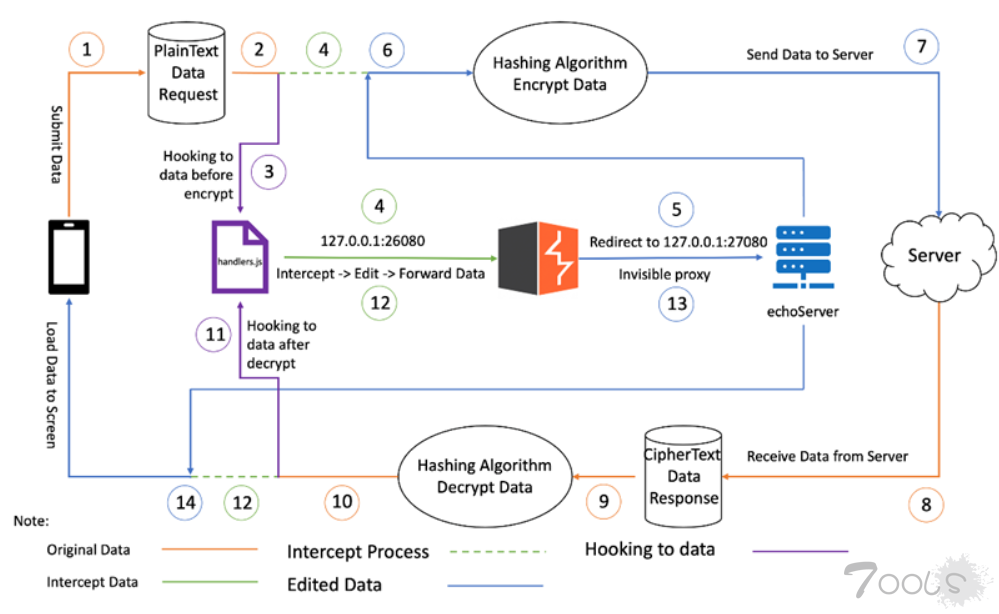

修改hook脚本,将hook出来的数据,发送到burp便于篡改数据,篡改后的请求包发送到服务端,服务端处理后,返回响应包。

666.js


Java.perform(function () {
    var CryptoUtil = Java.use('com.xxxx.security.CryptoUtil');
    CryptoUtil.encryptDataWithSM.implementation = function(app,dataStr,keyStr) {
        console.log("Hook Start...");
        console.log("encrycptDataStr",dataStr,keyStr);
        var data;
        send({from:"/http",payload:dataStr,api_path:"request"}); //将dataStr发送到burpTracer.py
        <!-- 接收burp篡改后返回的数据 ↓-->
        var op = recv("input",function(value){
            data = value.payload
        });
        op.wait();
        console.log("经过burp修改后的参数:" +data);
        var ret = this.encryptDataWithSM(app,data,keyStr);
        return ret;
    }
//hook解密函数
    CryptoUtil.decryptDataWithSM.implementation = function (app,dataStr,keyStr) {
       var getVal = this.decryptDataWithSM(app, dataStr, keyStr);
       send({ from: "/http", payload: getVal, api_path: "response" });
       var op = recv('input',function (value) {
             console.log(value.payload);
            });
       op.wait();
        return getVal;
}
});

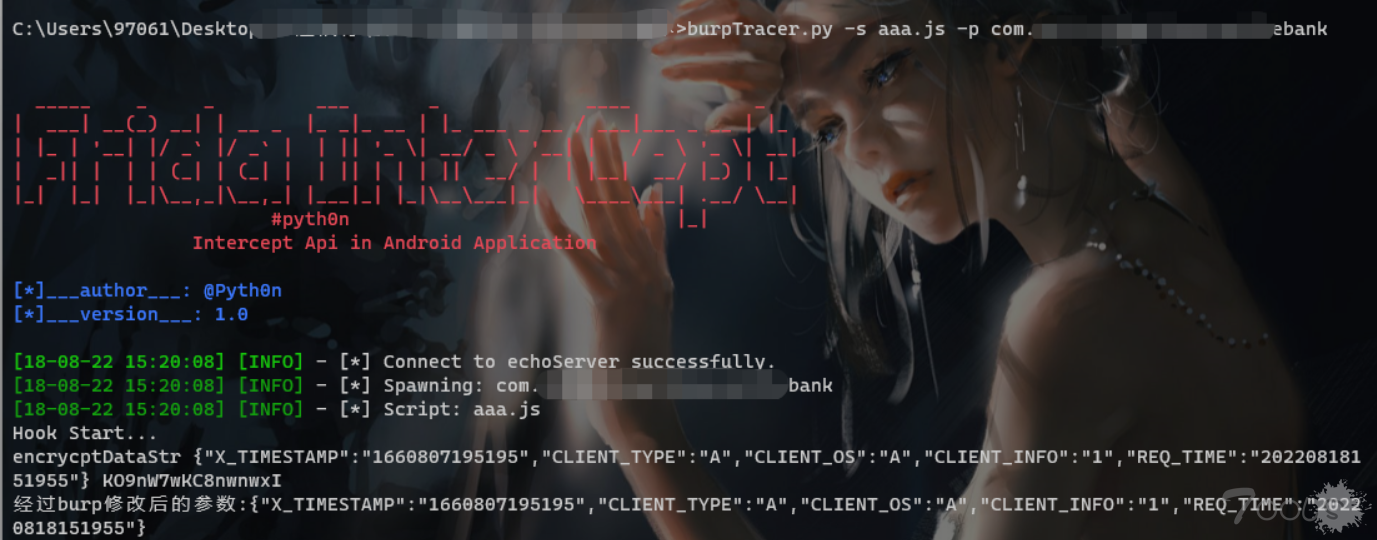

3.2 burpTracer.py,直接使用


from codecs import ignore_errors
import frida
import requests
import time
import sys
import os
import socket
import argparse
from log import *

print ('''\033[1;31m \n
  _____    _     _         ___       _             ____           _
|  ___| __(_) __| | __ _  |_ _|_ __ | |_ ___ _ __ / ___|___ _ __ | |_
| |_ | '__| |/ _` |/ _` |  | || '_ \| __/ _ \ '__| |   / _ \ '_ \| __|
|  _|| |  | | (_| | (_| |  | || | | | ||  __/ |  | |__|  __/ |_) | |_
|_|  |_|  |_|\__,_|\__,_| |___|_| |_|\__\___|_|   \____\___| .__/ \__|
                       #pyth0n                             |_|
                Intercept Api in Android Application
''')

print ("\033[1;34m<li>___author___: @Pyth0n\033[1;37m")
print ("\033[1;34m<li>___version___: 1.0\033[1;37m")
print ("")

BURP_HOST = "127.0.0.1"
BURP_PORT = 26080

def check_platform():
    try:
        platforms = {
        'linux'  : 'Linux',
        'linux1' : 'Linux',
        'linux2' : 'Linux',
        'darwin' : 'OS X',
        'win32'  : 'Windows'
        }
        if sys.platform not in platforms:
            sys.exit(logger.error("[x_x] Your platform currently does not support."))
    except Exception as e:
        logger.error("[x_x] Something went wrong, please check your error message.\n Message - {0}".format(e))

def check_ps_for_win32():
    try:
        if sys.platform == "win32":
            PROCESSNAME = "iTunes.exe"
            for proc in psutil.process_iter():
                try:
                    if proc.name() == PROCESSNAME:
                        return True
                except (psutil.NoSuchProcess, psutil.AccessDenied, psutil.ZombieProcess) as e:
                    pass
            return sys.exit(logger.error("[x_x] Please install iTunes on MicrosoftStore or run iTunes frist."))
    except Exception as e:
        logger.error("[x_x] Something went wrong, please check your error message.\n Message - {0}".format(e))

def check_echo_server():
    sock = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
    result = sock.connect_ex(('127.0.0.1',27080))
    if result == 0:
       logger.info("<li> Connect to echoServer successfully.")
    else:
        sock.close()
        sys.exit(logger.error("[x_x] Please start echoServer."))

def run():
    #check platform support
    check_platform()
    #check process iTunes for Win32s
    #check_ps_for_win32()
    #check python version
    if sys.version_info < (3, 0):
        logger.error("[x_x] iOS hook requires Python 3.x")
        sys.exit(0)
    else:
        handle_del_log()
        main()

def handle_del_log():
    try:
        pwd = os.getcwd()
        path = pwd + '/errors.log'
        file_stats = os.stat(path)
        if (file_stats.st_size > 1024000000): #delete errors.log if file size > 1024 MB
            os.remove(path)
        else:
            return True
    except Exception as e:
        logger.error("[x_x] Something went wrong when clear error log. Please clear error log manual.\n [Error Message] - {0}".format(e))

def main():
    def frida_process_message(message, data):

        handled = False
        if message['type'] == 'input':
            handled = True
        elif message['type'] == 'send':
            body = message['payload']
            API_PATH = body['api_path']
            if body['from'] == '/http':
                try:
                    # 把数据发给 本地burp 监听的 26080端口
                    req = requests.request('FRIDA', 'http://%s:%d/%s' % (BURP_HOST, BURP_PORT, API_PATH), headers={'content-type':'application/json'}, data=body['payload'].encode('utf-8'))
                    script.post({ 'type': 'input', 'payload': req.text }) # 把修改后的数据传输回给js
                    handled = True
                except requests.exceptions.RequestException as e:
                    logger.error("[x_x] Connection refused, please check configurage on BurpSute.\n [Error Message] - {0}".format(e))

    parser = argparse.ArgumentParser()
    parser.add_argument("-p", "--package")
    parser.add_argument("-n", "--name")
    parser.add_argument("-s", "--script", help='custom handler script')
    parser.add_argument("-r", "--remote",help="远程主机")
    args, leftovers = parser.parse_known_args()

    try:
        #Spawning application with default script
        if args.package is not None and args.script is None:
            #check echoServer
            check_echo_server()
            #
            logger.info('<li> Spawning: ' + args.package)
            logger.info('<li> Script: ' + 'handlers.js')
            time.sleep(2)
            device = frida.get_usb_device()
            pid = device.spawn(args.package)
            device.resume(pid)
            time.sleep(1)
            session = device.attach(pid)
            with open("handlers.js") as f:
                script = session.create_script(f.read())
            script.on("message", frida_process_message)
            script.load()
            input()
        #Attaching default script to application
        if args.name is not None and args.script is None:
            #check echoServer
            check_echo_server()
            #
            logger.info('<li> Attaching: ' + args.name)
            logger.info('<li> Script: ' + 'handlers.js')
            time.sleep(2)
            process = frida.get_usb_device().attach(args.name)
            with open("handlers.js") as f:
                script = process.create_script(f.read())
            script.on("message", frida_process_message)
            script.load()
            input()
        # Spawing application with custom script
        if args.package is not None and args.script is not None:
            #check echoServer
            check_echo_server()
            #
            if os.path.isfile(args.script):
                logger.info('<li> Spawning: ' + args.package)
                logger.info('<li> Script: ' + args.script)
                time.sleep(2)
                device = frida.get_remote_device()
                pid = device.spawn(args.package)
                device.resume(pid)

                time.sleep(1)
                session = device.attach(pid)
                with open(args.script,encoding='utf-8',errors='ignore') as f:
                    script = session.create_script(f.read())
                script.on("message", frida_process_message)
                script.load()
                input()
            else:
                logger.error('[?] Script not found!')

        #Attaching default script to application
        if args.name is not None and args.script is not None:
            #check echoServer
            check_echo_server()
            #
            logger.info('<li> Attaching: ' + args.name)
            logger.info('<li> Script: ' + args.script)
            time.sleep(2)
            process = frida.get_usb_device().attach(args.name)
            with open(args.script,encoding='utf-8',errors='ignore') as f:
                script = process.create_script(f.read())
            script.on("message", frida_process_message)
            script.load()
            input()

        if args.remote is not None and args.script is not None:
            #check echoServer
            check_echo_server()
            #
            logger.info('<li> Attaching: ' + args.remote)
            logger.info('<li> Script: ' + args.script)
            time.sleep(2)
            process = frida.get_remote_device().attach(args.remote)
            with open(args.script,encoding='utf-8',errors='ignore') as f:
                script = process.create_script(f.read())
            script.on("message", frida_process_message)
            script.load()
            input()

    #EXCEPTION FOR FRIDA
    except frida.ServerNotRunningError:
        logger.error("Frida server is not running.")
    except frida.TimedOutError:
        logger.error("Timed out while waiting for device to appear.")
    except frida.TransportError:
        logger.error("[x_x] The application may crash or lose connection.")
    #EXCEPTION FOR OPTIONPARSING

    #EXCEPTION FOR SYSTEM
    except Exception as e:
        logger.error("[x_x] Something went wrong, please check your error message.\n Message - {0}".format(e))

    except KeyboardInterrupt:
        logger.info("Bye bro!!")
        # sys.exit(0)

if __name__ == '__main__':
    run()

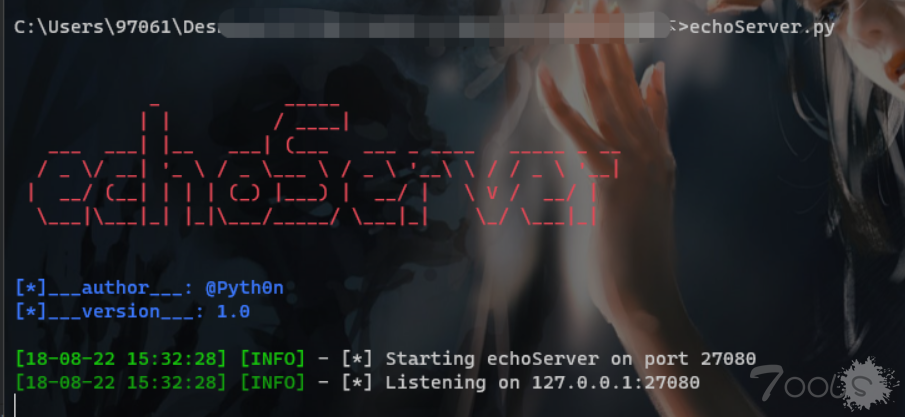

3.3echoServer.py 直接使用


from http.server import HTTPServer, BaseHTTPRequestHandler
from optparse import OptionParser
from log import *

print ('''\033[1;31m \n
            _           _____
           | |         / ____|
   ___  ___| |__   ___| (___   ___ _ ____   _____ _ __
  / _ \/ __| '_ \ / _ \\___ \ / _ \ '__\ \ / / _ \ '__|
 |  __/ (__| | | | (_) |___) |  __/ |   \ V /  __/ |
  \___|\___|_| |_|\___/_____/ \___|_|    \_/ \___|_|
''')
print ("\033[1;34m<li>___author___: @Pyth0n\033[1;37m")
print ("\033[1;34m<li>___version___: 1.0\033[1;37m")
print ("")

ECHO_PORT = 27080

class RequestHandler(BaseHTTPRequestHandler):

    def do_FRIDA(self):
        request_path = self.path

        request_headers = self.headers
        content_length = request_headers.get('content-length')
        # length = int(content_length[0]) if content_length else 0
        length = int(content_length) if content_length else 0

        self.send_response(200)
        self.end_headers()

        self.wfile.write(self.rfile.read(length))

def main():
    try:
        logger.info('<li> Listening on 127.0.0.1:%d' % ECHO_PORT)
        server = HTTPServer(('', ECHO_PORT), RequestHandler)
        server.serve_forever()

    except KeyboardInterrupt:
        logger.info("Stop echoServer!!")

if __name__ == "__main__":
    logger.info('<li> Starting echoServer on port %d' % ECHO_PORT)
    main()

3.4 使用

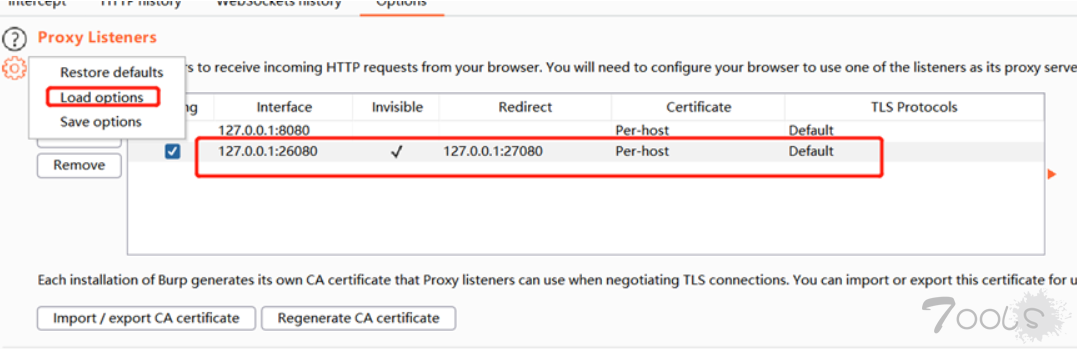

● burp的proxyoptions导入burpsuite_configuration_proxy.json,

burpsuite_configuration_proxy.json


{
    "proxy":{
        "request_listeners":[
            {
                "certificate_mode":"per_host",
                "custom_tls_protocols":[],
                "enable_http2":true,
                "listen_mode":"loopback_only",
                "listener_port":8080,
                "running":true,
                "use_custom_tls_protocols":false
            },
            {
                "certificate_mode":"per_host",
                "custom_tls_protocols":[
                    "SSLv3",
                    "TLSv1",
                    "TLSv1.1",
                    "TLSv1.2",
                    "TLSv1.3"
                ],
                "enable_http2":true,
                "listen_mode":"specific_address",
                "listen_specific_address":"127.0.0.1",
                "listener_port":26080,
                "redirect_to_host":"127.0.0.1",
                "redirect_to_port":27080,
                "running":true,
                "support_invisible_proxying":true,
                "use_custom_tls_protocols":false
            }
        ]
    }
}

● 手机上开启frida-server

● 运行echoServer.py

● 运行burpTracer.py


adb forward tcp:27042 tcp:27042 #转发端口
burpTracer.py -s 666.js -p com.xxx.xxx.bank

此时手机会自己打开app,如果burp打开监听,也会收到数据包,便可以愉快的改包测试了。.

下面是流程原理:

0x04 乱杀

敏感信息泄露

  1. 登录时,输入账号然后抓包,将抓到的请求包放行。

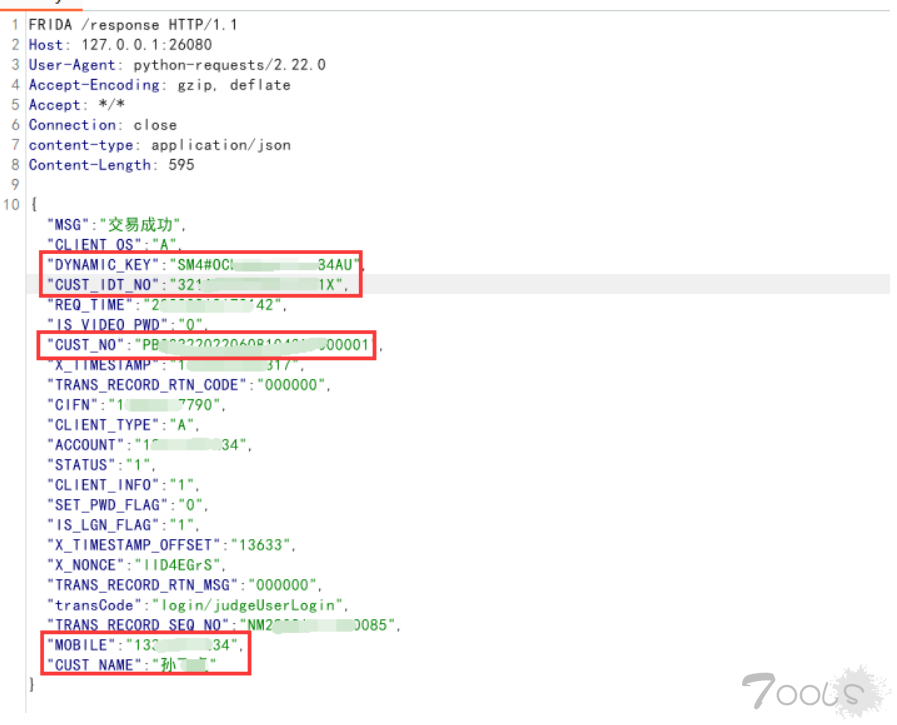

  1. 从返回包中,可以看到

接下来就是各种乱杀:

自评TCV:3

关于作者

Adminxe6篇文章601篇回复

评论88次

要评论?请先  登录  或  注册
